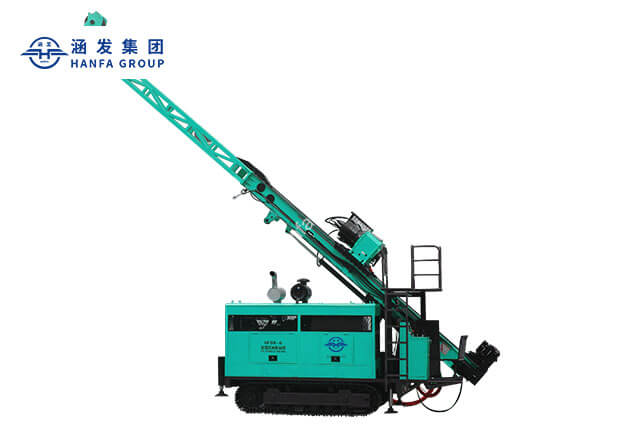

HFDX-6+全液壓巖心鉆機
- 鉆孔直徑: BQ, NQ, HQ, PQ
- 鉆孔深度:2050/1600/1300/1000m
- 發動機功率:178kW
- 額定轉速:2200rpm
產品介紹
采用繩索取芯金剛石鉆探技術的全液壓動力頭式巖心鉆機已成為發達國家用于固體礦床勘探的主導機型，也成為當前我國鉆探技術與裝備發展的主導趨勢。在這種趨勢下，鄭州涵發勘察機械設備有限公司根據中國的國情，成功開發出HFDX-6+巖心鉆機。
產品特性
1.液壓泵組、主閥、液壓馬達均選用國際品牌純進口件。馬達組和減速機給進提升機構，長給進行程;主軸回轉采用雙馬達驅動閉式回路。
2.檔機械變速液壓無級調速;桅桿用油缸起落，有觸地功能，可折疊;液壓系統采用負載敏感控制，履帶自行行走;配備高位工作臺和孔口工作臺裝置;配有液壓支腿裝置;有上扶正、下導向裝置;孔口配有液壓夾持器。
產品應用
適用于地質、冶金、煤炭、石油、天然氣、地下水等行業。
技術參數
| Diesel Engine | Model | Cummins 6CTA (turbocharged and charge water cooled) |
| Displacement | 8.3L?(2.19 US Gallons) | |
| Power | 178kW?(240HP) | |
| Rated RPM(Factory setting) | 2200rpm | |
| Drilling Capacity | BQ | 2050m |
| NQ | 1600m | |
| HQ | 1300m | |
| PQ | 1000m | |
| Hydraulic Tank | Capacity | 420 L?(111 US Gallons) |
| Capacity of Main Hoist | Hoisting Speed?(single wire) | 38-70m/min(bare drum) |
| Hoisting force?(single wire) | 120kN(26976 lbf) | |
| Steel Wire Diameter | 22 mm(0.86 inch) | |
| Steel Wire Length | 50 m(164 feet) | |
| Capacity of Wire line Hoist | Hoisting Force?(single wire) | 15 kN(3372 lbf)?(bare drum) |
| Steel Wire Diameter | 6 mm(0.24 inch) | |
| Steel Wire Length | 2000 m(6560 feet) | |
| Mast | Mast Height | 11 m(36 feet) |
| Mast Adjusting Angle | 0°—90° | |
| Drilling Angle | 45o?off horizontal to 90overtical down | |
| Feeding Stroke | 3800 mm(150 inch) | |
| Slippage Stroke | 1500 mm(59 inch) | |
| Feed Pull | 22000kg(48510 lb) | |
| Feed Thrust | 11000kg(24255 lb) | |
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) | |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW320 | |
| Stroke | 110mm(4.3 inch) | |
| Output volume | 320,230,165,118 L/min (84.5,?61,?44,?31 US Gallons/min) | |
| Discharge pressure | 4.0,?5.0,?6.0,?8.0 Mpa(580,?725,?870,?1160 psi) | |
| Others | Weight | 14500 Kg(31973 lb) |
| Transport Dimensions?(L?×?W?×H?) | 5900×2240×2500mm (232.3×88.1×98.4 inch) | |
| Transport Way | Steel Crawler |
