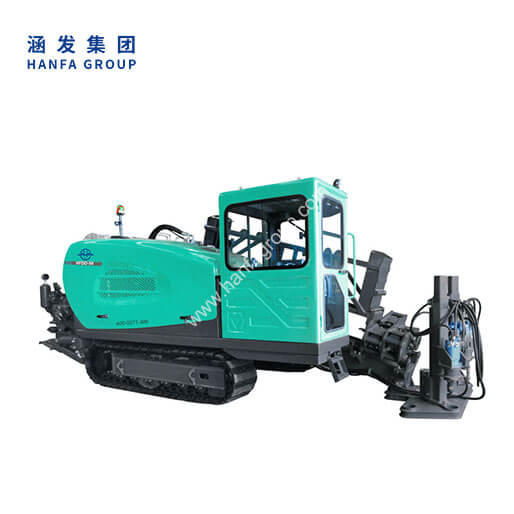

HFDD-50X水平定向鉆機
- 最大推力: 37-50t
- 最大拉力:37-50t
- 發動機功率:154-179kW
- 旋轉扭矩:13200-18500N.m
產品特性
- 1高低速推拉旋轉系統，柱塞變量馬達實現動力頭推拉高低速，增大鉆機工況適應能力，提升鉆機施工效率；
- 2整機采用座椅開關、邏輯互鎖，可選用可選線控比例行走、觸電保護、瞬間增力20%等創新技術；
- 3推拉旋轉采用多檔輸出技術，發動機采用高壓共軌、全電控模塊技術，系統節能、施工高效，施工效率提升15%；
- 4整機視野開闊，單\雙手柄模式、線控比例行走系統，操作舒適、高效、安全。
技術參數
| Project |
HFDD-37X |
HFDD-50X |
||
| Engine |
Model |
/ |
CumminsQSB5.9-C210 |
CumminsQSC8.3-C240 |
| Rated power |
kW/r/min |
154/2200 |
179/2200 |
|
| Push and pull |
Maximum push-pull force |
t |
37 |
42/50 |
| Maximum push-pull speed |
m/min |
32 |
42 |
|
| Spin |
Torque |
N·m |
13200 |
18500 |
| Maximum speed |
r/min |
140 |
145 |
|
| Mud pump |
Maximum flow |
L/min |
400 |
450 |
| Maximum?pressure |
MPa |
8 |
8 |
|
| Drill pipe |
mm×m |
φ73/φ83×3 |
φ83×3 |
|
| Truck mounted crane |
Lifting weight |
t |
/ |
/ |
| Lifting torque |
t?m |
/ |
/ |
|
| Maximum entry angle |
° |
20 |
20 |
|
| Maximum back expansion diameter |
mm |
φ900 |
φ900 |
|
| Quality |
t |
10.5 |
11.2 |
|
| Dimensions |
mm |
6200×2280×2450 |
6500×2250×2450 |
|
| Remarks |
/ |
Optional: 1. Cab; 2. Heating and cooling air conditioning; 3. Fully automatic gripper (drill pipe box); 4. Semi-automatic gripper; 5. Double anchoring; 6. Mud antifreeze; 7. Cleaning water gun; |
||
