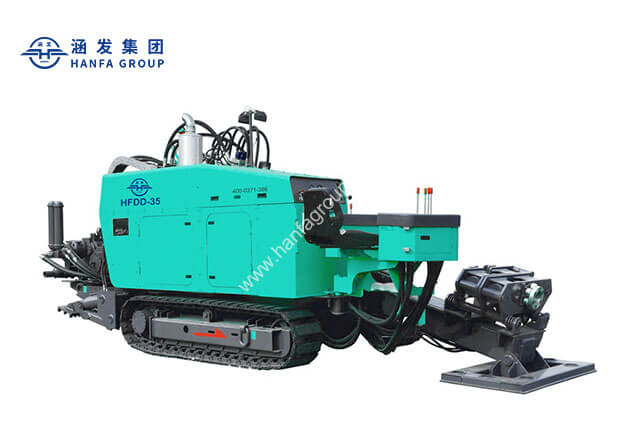

HFDD-35X水平定向鉆機
- 最大推力: 32-35t
- 最大拉力:32-35t
- 發動機功率:154kW
- 旋轉扭矩:12000-12600N.m
產品特性
- 1單手柄液控先導系統，為整機提供舒適的操作性能和靈活的調節性能，一流品牌液壓元件確保整機液壓系統運行可靠；
- 2動力頭、虎鉗雙浮動專利技術能夠極大地保護鉆桿螺紋，提高鉆桿使用壽命；
- 3動力頭推拉配置柱塞變量馬達減速機，通過齒輪齒條結構，推拉速度快，運行可靠。
技術參數
| Project |
HFDD-32X |
HFDD-35X |
||
| Engine |
Model |
/ |
CumminsQSB5.9-C210 |
CumminsQSB5.9-C210 |
| Rated power |
kW/r/min |
154/2200 |
154/2200 |
|
| Push and pull |
Maximum push-pull force |
t |
32 |
35 |
| Maximum push-pull speed |
m/min |
22 |
36 |
|
| Spin |
Torque |
N·m |
12000 |
12600 |
| Maximum speed |
r/min |
140 |
140 |
|
| Mud pump |
Maximum flow |
L/min |
320 |
320 |
| Maximum?pressure |
MPa |
8 |
8 |
|
| Drill pipe |
mm×m |
φ73×3 |
φ73×3 |
|
| Truck mounted crane |
Lifting weight |
t |
/ |
/ |
| Lifting torque |
t?m |
/ |
/ |
|
| Maximum entry angle |
° |
20 |
20 |
|
| Maximum back expansion diameter |
mm |
φ800 |
φ800 |
|
| Quality |
t |
10 |
10 |
|
| Dimensions |
mm |
6500×2250×2450 |
6200×2280×2450 |
|
| Remarks |
/ |
Optional: 1. Semi-automatic gripper; 2. Double anchoring; 3. Mud antifreeze; 4. Cleaning water gun |
Optional: 1. Cab; 2. Heating and cooling air conditioning; 3. Fully automatic gripper (drill pipe box); 4. Semi-automatic gripper; 5. Double anchoring; 6. Mud antifreeze; 7. Cleaning water gun; |
|
