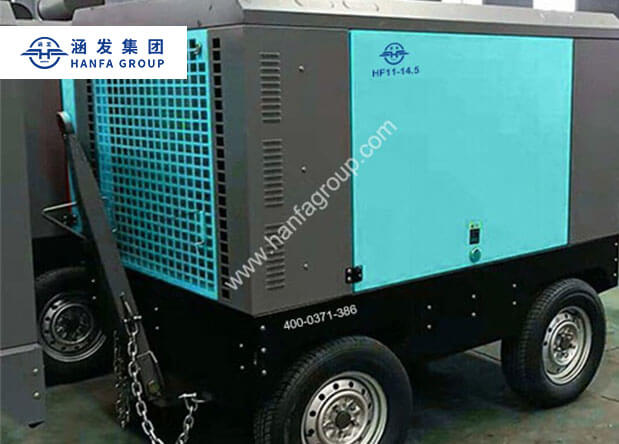

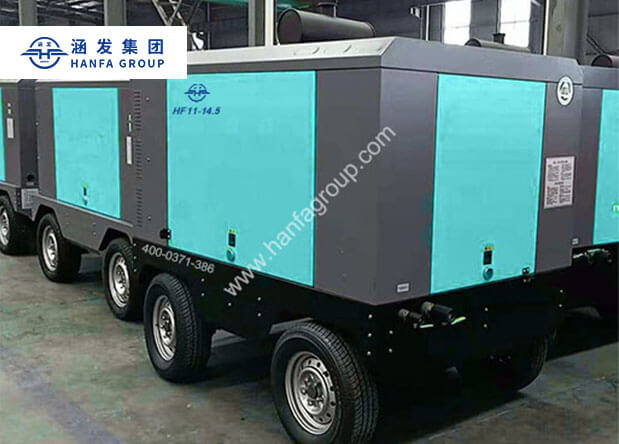

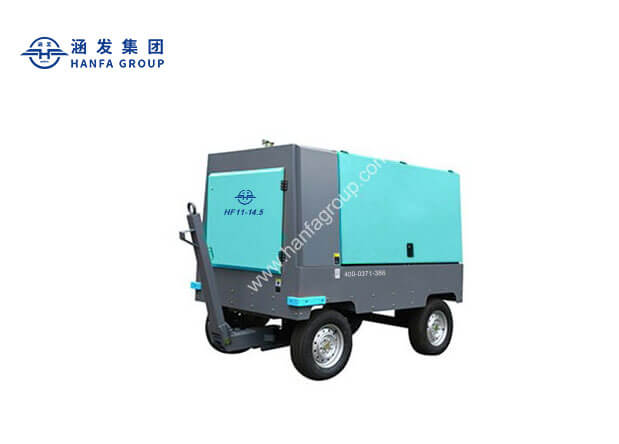

HF11-14.5 輕型移動螺桿空氣壓縮機-木材清除產品
- 排氣量: 11m3/min
- 空氣壓力:14.5bar
- 發動機功率:118kW
- 重量:2200-2450kg
產品介紹
The series of products for engineering mines need 80-110mm diameter burrow drill, anchor drill, all kinds of pneumatic pick, rock drill, shotcrete machine and all kinds of air source design; The series of products pay attention to the reliability and durability of the basis of optimized control system, greatly reduce the product energy consumption; The whole series adopts national III engine.
產品應用
技術參數
| Model |
Rated displacement(m3/min) |
Rated exhaust pressure（bar) |
Diesel engine |
Nose |
Weight(kg) |
Form |
| HF11-14.5 |
11 |
14.5 |
118 |
Level of compression |
Second round:2200 |
Second round/four-wheel |
| HF12-15 |
12 |
15 |
118 |
secondary compression |
2,450 |
four-wheel |
